HRC Fuses (High Rupturing Capacity)

High-performance fuse protection for electrical circuits and equipment

HRC Fuses for Circuit Protection

High Rupturing Capacity Fuses for reliable circuit protection in industrial applications

Fuse Switch Disconnectors DIN Type HRC Fuses NH Type Fuse Links

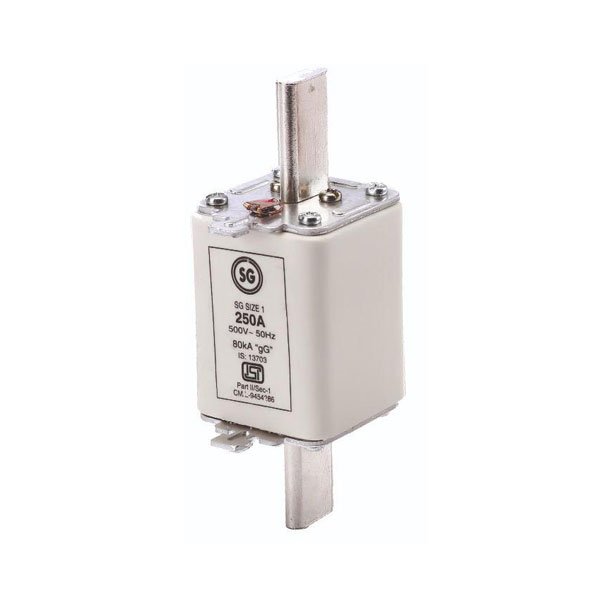

DIN Type HRC Fuses

Standard Protection

Standardized fuses according to DIN 43620 for reliable protection of motors, transformers, and cables.

Standard DIN 43620
Current Range 2A to 630A
Voltage Rating Up to 1000V AC
Breaking Capacity Up to 120kA
00 Size (14x51mm)
2A - 25A 20A - 32A 35A - 50A
1 Size (22x58mm)
80A - 100A 125A - 160A 200A - 250A
2 Size (22x58mm)
315A - 400A 500A - 630A
Key Features:
  • High breaking capacity for reliable protection
  • Time delay characteristic for motor starting
  • Sand-filled construction for arc quenching
  • Indicator pin for visual fuse status
  • Compact design for space-saving installation

NH Fuse Links (Knife Blade Type)

Heavy Duty

Knife blade type fuse links for high current applications with easy replacement and maintenance.

Type Knife Blade (NH)
Current Range 16A to 1250A
Voltage Rating Up to 690V AC
Breaking Capacity Up to 120kA
Standard NH Fuse Links
NH00 (16A-160A) NH1 (80A-250A) NH2 (125A-400A) NH3 (315A-630A)
High Capacity NH Fuses
NH4 (500A-800A) NH5 (800A-1250A)

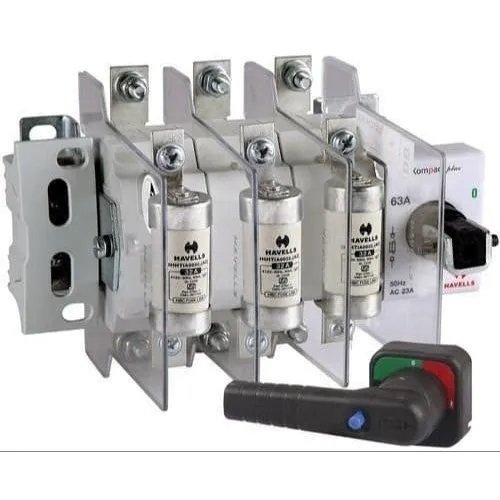

Fuse Switch Disconnectors

Combined Function

Combination units providing isolation, switching, and fuse protection in a single device.

Function Isolation + Switching + Protection
Current Range 32A to 800A
Poles 3P & 4P
Mounting Panel or DIN-rail
Available Models
FS-63 (63A, 3P) FS-100 (100A, 3P) FS-160 (160A, 3P) FS-250 (250A, 3P) FS-400 (400A, 3P) FS-630 (630A, 3P) FS-800 (800A, 3P)

HRC Fuse Selection Guide

Fuse Type Current Range Breaking Capacity Applications Standards
DIN Type 2A - 630A Up to 120kA Motor protection, Transformers, Cables DIN 43620, IEC 60269
NH Fuse Links 16A - 1250A Up to 120kA Heavy industrial, Power distribution IEC 60269, BS 88
Fuse Switch Disconnectors 32A - 800A Up to 100kA Combined isolation and protection IEC 60947-3

L&T Power Capacitors

Complete power factor correction solutions for industrial and commercial applications

L&T Power Capacitors

L&T Power Capacitors for efficient power factor correction and energy savings

LTCCF Cylindrical Capacitor LTBCF Box Type Capacitor LTXL Heavy Duty Capacitor

Standard Duty Capacitors

General Industrial

Designed for general industrial and semi-industrial applications with standard load conditions.

Series LTCCF (Cylindrical), LTBCF (Box)
Current Range 1 kVAr to 33.1 kVAr
Over Current Withstand 1.3 x In (Rated Current)
Construction Metallized Polypropylene Film
Cylindrical Series (LTCCF)
LTCCF304B2 (4 kVAr, 440V) LTCCF307B2 (7 kVAr, 440V) LTCCF310B2 (10 kVAr, 440V) LTCCF315B2 (15 kVAr, 440V) LTCCF320B2 (20 kVAr, 440V) LTCCF325B2 (25 kVAr, 440V)

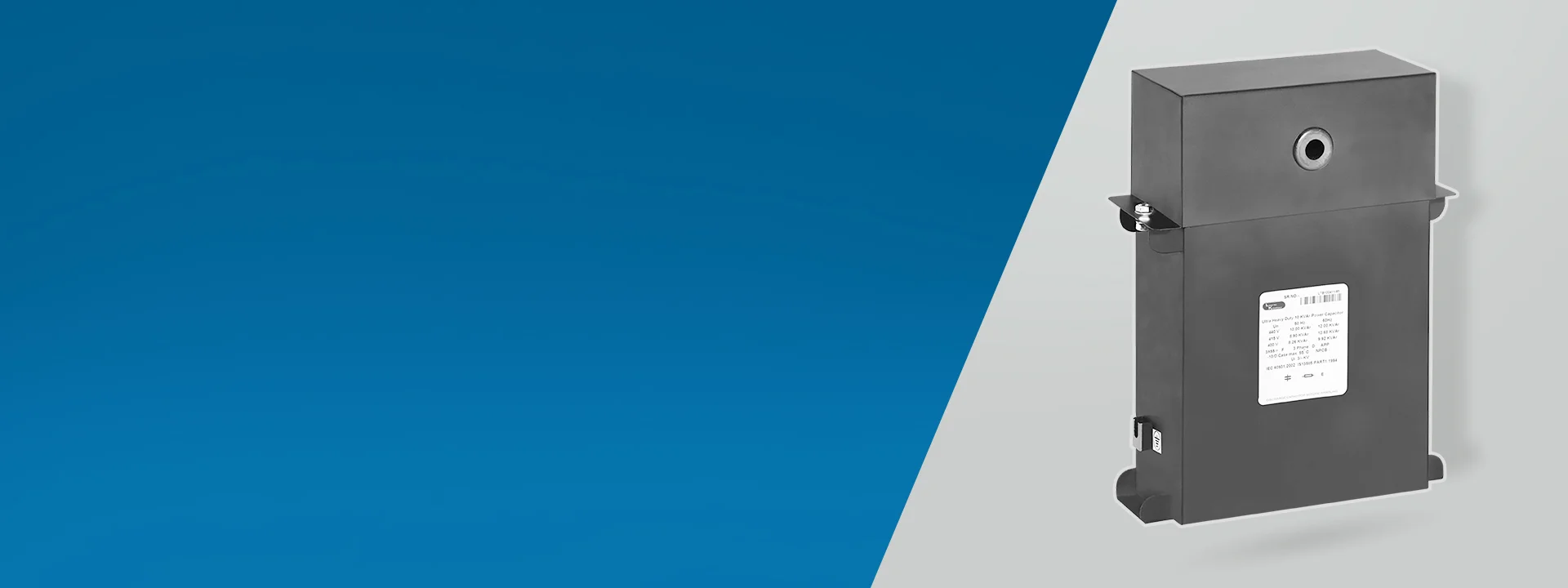

Box Type Series (LTBCF)
LTBCF101B2 (1 kVAr, 440V) LTBCF152B2 (1.5 kVAr, 440V) LTBCF252B2 (2.5 kVAr, 440V) LTBCF502B2 (5 kVAr, 440V) LTBCF752B2 (7.5 kVAr, 440V) LTBCF103B2 (10 kVAr, 440V)
Key Features:
  • Metallized polypropylene film with stacked winding
  • Non-PCB biodegradable resin impregnation
  • Self-healing type with overpressure disconnector
  • Finger-proof terminals for safety
  • Built-in discharge resistors

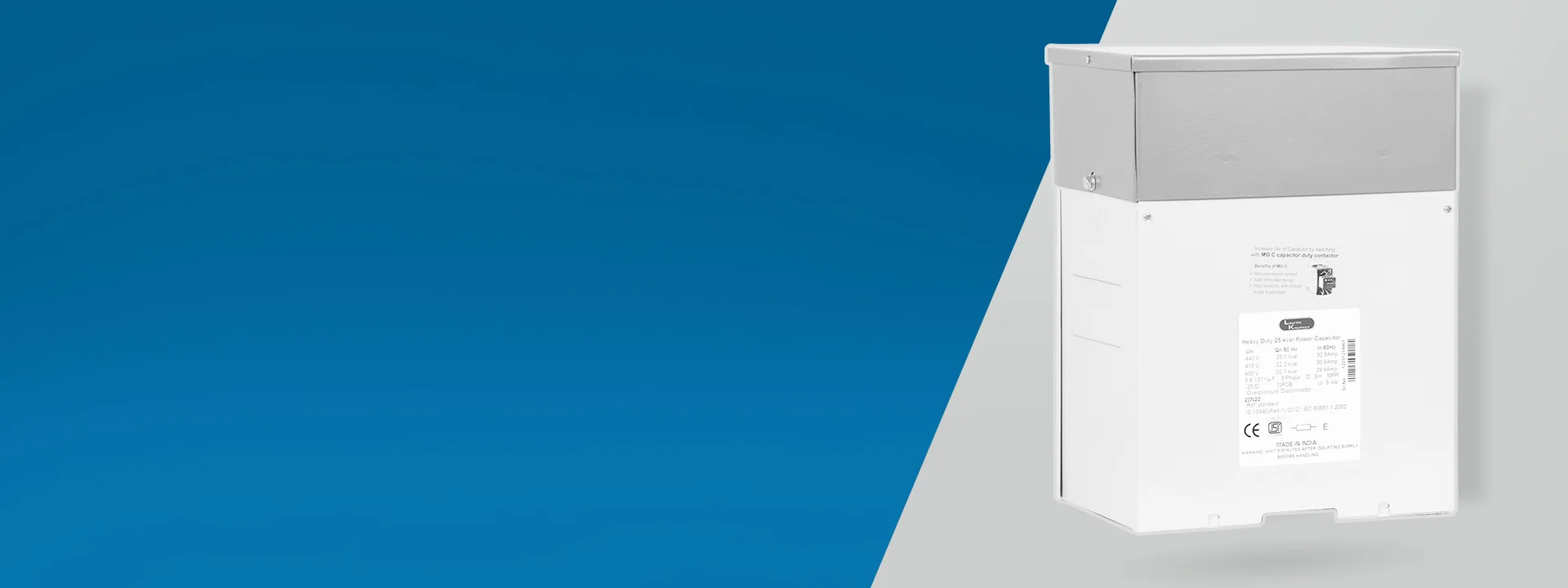

Heavy Duty Capacitors

Harsh Environments

Built to withstand harsher industrial environments with higher inrush currents and voltage fluctuations.

Series LTCCN (Cylindrical), LTBCH (Box)
Current Range 3-30 kVAr (Cyl.), 5-50 kVAr (Box)
Over Current Withstand 1.8 x In (Rated Current)
Operating Life 150,000 hours
Cylindrical Series (LTCCN)
LTCCN303B2 (3 kVAr, 440V) LTCCN306B2 (6 kVAr, 440V) LTCCN310B2 (10 kVAr, 440V) LTCCN315B2 (15 kVAr, 440V) LTCCN320B2 (20 kVAr, 440V) LTCCN325B2 (25 kVAr, 440V)
Box Type Series (LTBCH)
LTBCH305B2 (5 kVAr, 440V) LTBCH310B2 (10 kVAr, 440V) LTBCH315B2 (15 kVAr, 440V) LTBCH320B2 (20 kVAr, 440V) LTBCH325B2 (25 kVAr, 440V) LTBCH350B2 (50 kVAr, 440V)
Construction Features:
  • Enhanced robustness for harsh environments
  • Inert gas filling in cylindrical types
  • Improved thermal management
  • Higher inrush current withstand capability
  • Extended operational life

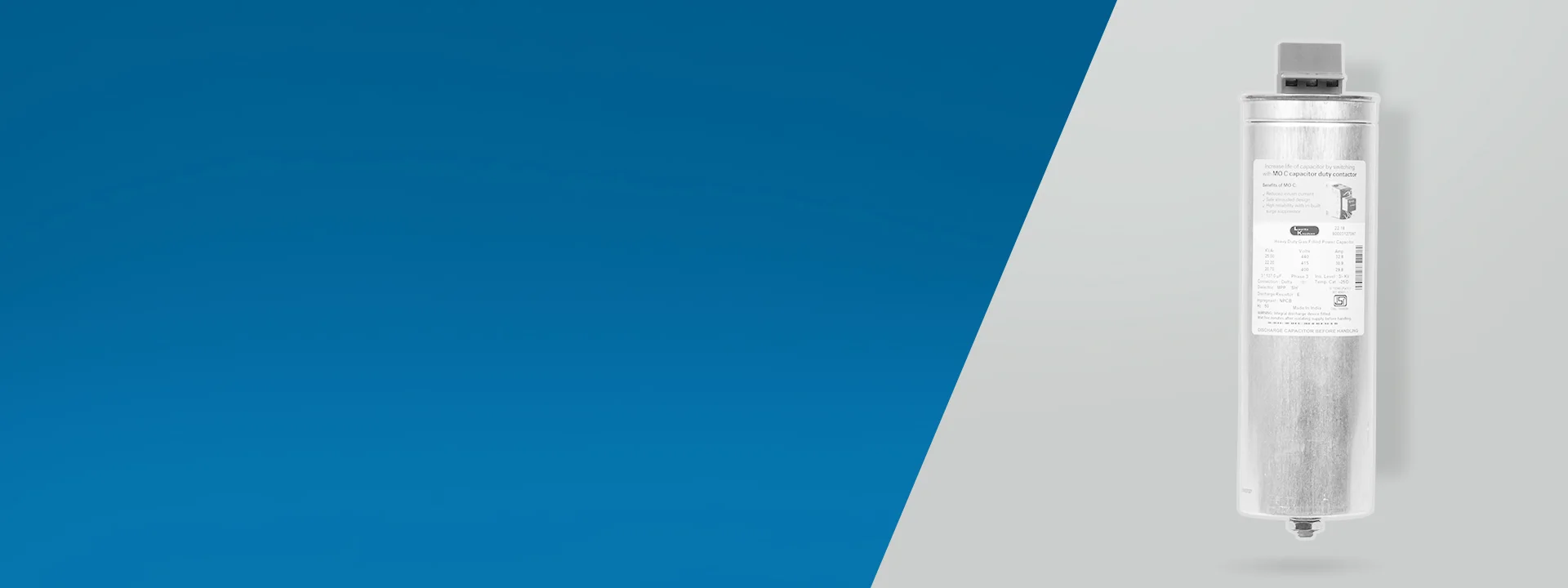

Super & Ultra Heavy Duty Capacitors

High Harmonic Applications

Designed for the most demanding applications with high harmonic content and severe operational conditions.

Series LTXL (Ultra & Super Heavy Duty)
Peak Inrush Current Up to 300 x In
Applications High harmonic environments
Performance Handles significant harmonics
Available Models
LTXL-10 (10 kVAr, 440V) LTXL-15 (15 kVAr, 440V) LTXL-20 (20 kVAr, 440V) LTXL-25 (25 kVAr, 440V) LTXL-30 (30 kVAr, 440V) LTXL-40 (40 kVAr, 440V) LTXL-50 (50 kVAr, 440V)

L&T Capacitor Selection Guide

Series Duty Type Current Range Over Current Applications
LTCCF/LTBCF Standard Duty 1-33.1 kVAr 1.3 x In General industrial, Semi-industrial
LTCCN/LTBCH Heavy Duty 3-50 kVAr 1.8 x In Harsh environments, High inrush
LTXL Super/Ultra Heavy Duty 10-50 kVAr Up to 300 x In High harmonic content, Severe conditions

Schneider Electric Energy Meters

Advanced metering solutions for accurate energy monitoring and power quality management

Schneider Electric Energy Meters

Schneider Electric meters for comprehensive energy management and power quality analysis

PowerLogic Series Acti9 iEM Series

Acti9 iEM Series

Modular & Compact

Modular, DIN-rail mounted energy meters ideal for sub-billing and cost allocation in commercial buildings.

Mounting DIN-rail
Direct Measurement Up to 63A
Accuracy Class Class 0.5S
Display LCD with pulse output
Direct Measurement Models
A9MEM3100 (iEM3100) A9MEM3110 (iEM3110) A9MEM3120 (iEM3120)
CT Operated Models
A9MEM3200 (iEM3200) A9MEM3210 (iEM3210) A9MEM3220 (iEM3220)
Key Features:
  • Modular design for easy installation
  • LCD display for clear readings
  • Pulse output for data collection
  • Modbus communication available
  • Ideal for tenant billing

EasyLogic Series

Versatile & Cost-effective

Easy and cost-effective solution for essential energy monitoring and power factor management.

EM1000/EM1200 Series

Compact VAF, PF, Power & Energy meters with backlit LCD displays.

30002568 (EM1200 CI1.0 RS) 30002569 (EM1200 CI1.0) 30002570 (EM1000 CI1.0)

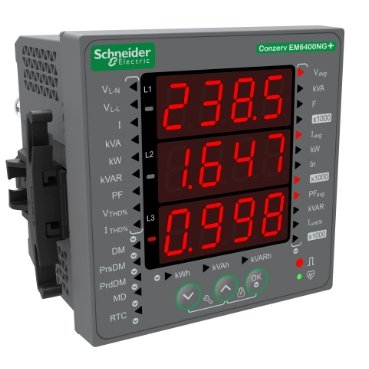

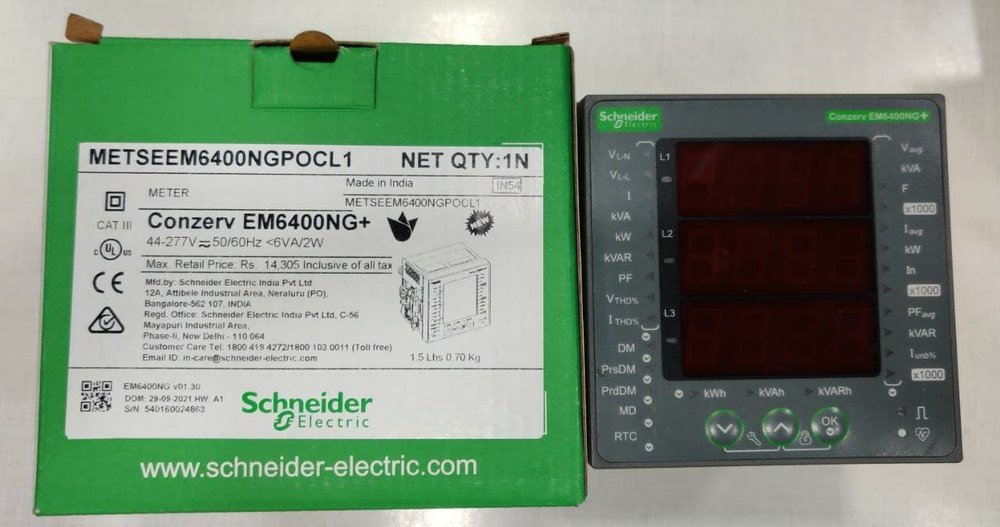

EM6400NG+ Series

"NextGen" digital multifunction meter with enhanced features.

METSEEM6400NGRSCL1 METSEEM6400NGRSCL5 METSEEM6400NGDSCL1
Hexa Series
EM6436H (Multifunction) EM6438H (Dual Source)
Features:
  • Harmonic analysis (up to 15th)
  • Data logging capability
  • RS485 communication
  • Dual source monitoring

PowerLogic Series

Advanced Performance

Advanced, high-performance meters for comprehensive energy management and power quality analysis.

Accuracy Class 0.2S to 0.5S
Harmonics Up to 63rd harmonic
Communication Modbus TCP/IP, Ethernet
Sampling 256 samples/cycle
PM2000 Series
PM210MG PM220MG PM230MG
PM5000 Series
PM5110 PM5560 PM5710
PM8000 Series
PM810 PM820 PM850
ION Series (Most Advanced):
ION9000 ION7650 ION8600

Redefines accuracy standards with precision twice that of existing standards.

Schneider Meter Series Comparison

Series Accuracy Class Harmonics Communication Applications
Acti9 iEM Class 0.5S Basic Pulse, Modbus (optional) Sub-billing, Tenant metering
EasyLogic Class 1.0 to 0.5S Up to 15th harmonic RS485, Modbus Light industrial, Commercial
PowerLogic Class 0.2S to 0.5S Up to 63rd harmonic Ethernet, Modbus TCP/IP Critical applications, PQ analysis
ION Series Ultra-high precision Comprehensive analysis Advanced protocols Most demanding environments

L&T Distribution Boards

Complete power distribution solutions for residential, commercial, and industrial applications

L&T Distribution Boards

L&T (Lauritz Knudsen) Distribution Boards for safe and efficient power distribution

Vertical TPN DB EXORA TPN DB EXORA SPN DB

EXORA SPN Distribution Boards

Single Phase

Single phase distribution boards designed for residential and light commercial applications.

Phase Type Single Phase (SPN)
Way Range 4 – 18 Ways
Protection Class IP30 / IP43 / IP54
Incomer Options MCB / RCCB / Isolator
Small (4-8 Ways)
EX-SPN-4 (4 Way) EX-SPN-6 (6 Way) EX-SPN-8 (8 Way)
Medium (10-14 Ways)
EX-SPN-10 (10 Way) EX-SPN-12 (12 Way) EX-SPN-14 (14 Way)
Large (16-18 Ways)
EX-SPN-16 (16 Way) EX-SPN-18 (18 Way)
Typical Applications:
  • Residential apartments and houses
  • Small shops and retail outlets
  • Office spaces and workstations
  • Educational institutions

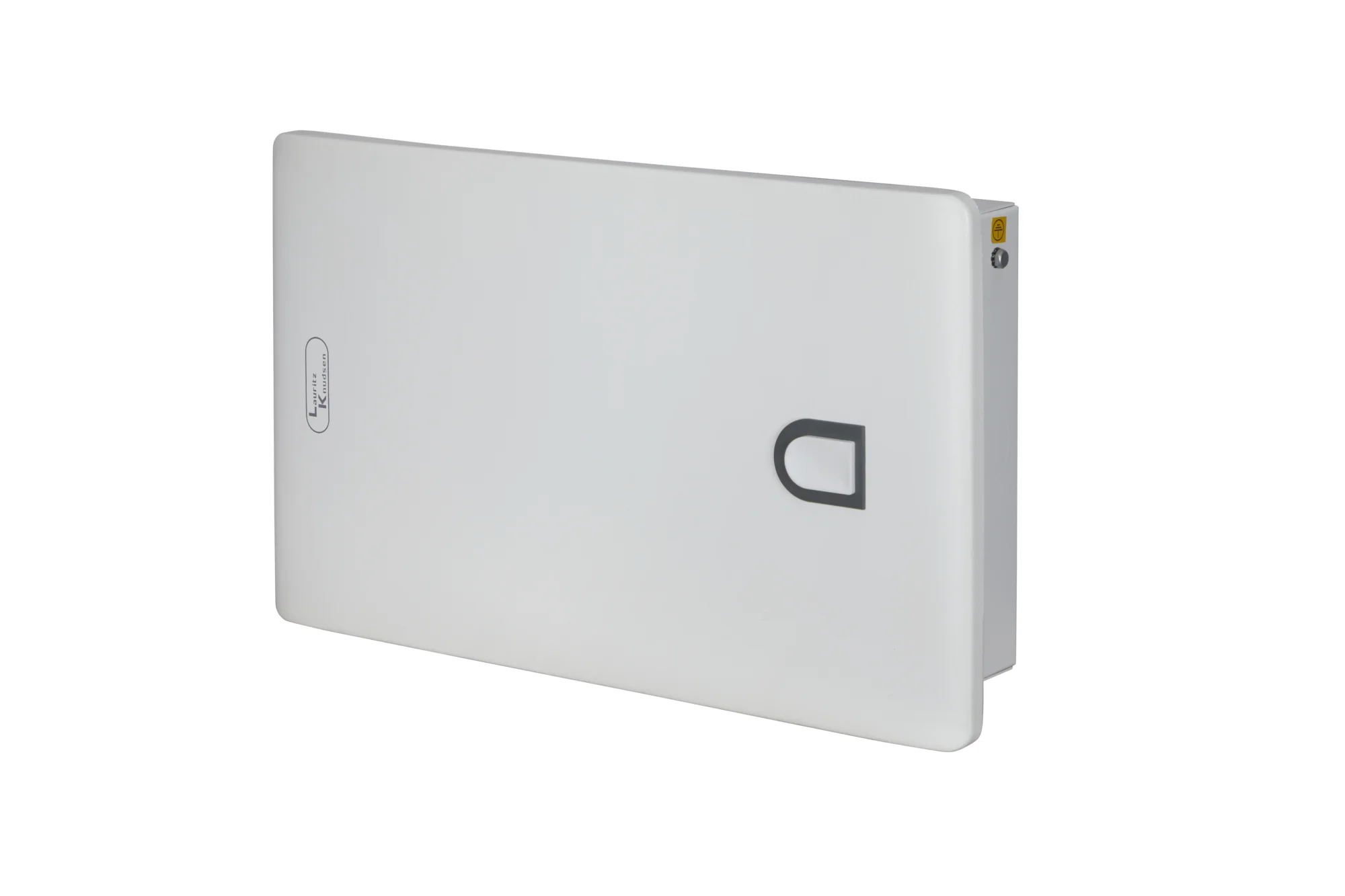

EXORA TPN Distribution Boards

Three Phase

Three phase distribution boards for commercial and industrial applications requiring higher power capacity.

Phase Type Three Phase (TPN)
Way Range 4 – 16 Ways
Protection Class IP30 / IP43 / IP54
Incomer Options MCB / RCCB / Isolator
Standard Configurations
EX-TPN-4 (4 Way) EX-TPN-6 (6 Way) EX-TPN-8 (8 Way) EX-TPN-10 (10 Way)
Higher Capacity
EX-TPN-12 (12 Way) EX-TPN-14 (14 Way) EX-TPN-16 (16 Way)
Industrial Applications:
  • Small to medium factories
  • Commercial buildings and malls
  • Warehouses and storage facilities
  • Healthcare facilities

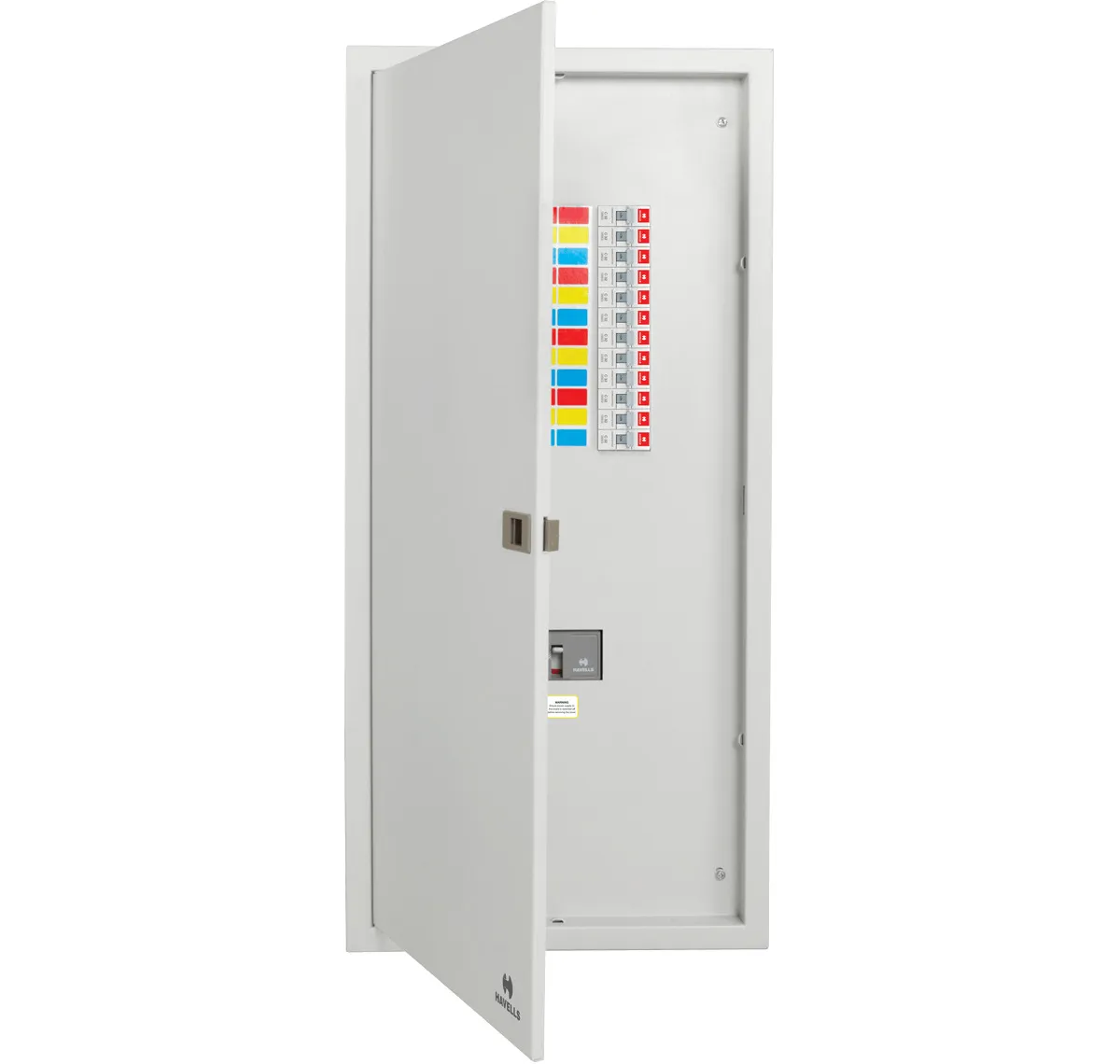

Vertical TPN & Phase Selector DBs

Specialized
Vertical TPN Distribution Boards
Configuration Vertical Mounting
Way Range 4 – 12 Ways
Protection Class IP43 / IP54
Incomer MCCB
VT-4 (4 Way) VT-6 (6 Way) VT-8 (8 Way) VT-12 (12 Way)
Phase Selector Distribution Boards
Configuration Phase Selection
Way Range 4 – 12 Ways
Protection Class IP43
Control Rotary Switches
PS-4 (4 Way) PS-6 (6 Way) PS-8 (8 Way) PS-12 (12 Way)

L&T Distribution Board Specifications (2025)

DB Category Phase Type Typical Way Range Protection Class Primary Incomer Options
EXORA SPN Single Phase 4 – 18 Way IP30 / IP43 / IP54 MCB / RCCB / Isolator
EXORA TPN Three Phase 4 – 16 Way IP30 / IP43 / IP54 MCB / RCCB / Isolator
Vertical TPN Three Phase 4 – 12 Way IP43 / IP54 MCCB
Phase Selector Three Phase 4 – 12 Way IP43 Rotary Switches
Construction Features:
  • Enclosure: CRCA sheet steel with powder coating
  • Busbars: Electro-tinned copper busbars
  • Safety: Transparent polycarbonate covers
  • Design: Modular and expandable
Compliance & Standards:
  • IEC 61439-1/2 compliant
  • IS 8623 (Indian Standard)
  • CE marked for export markets
  • Type tested assemblies
